Division 09 Assemblies

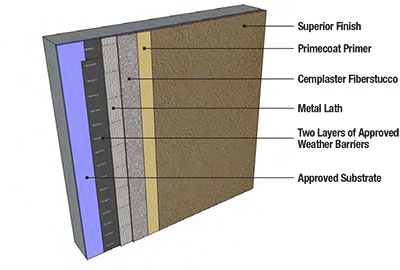

Cemplaster Fiberstucco Base 5
corpus christi stucco wall systems Cemplaster Fiberstucco Base 5 is the economical choice in engineered stucco. The ½” thick Cemplaster Fiberstucco application incorporates Master Wall® Primecoat Primer for better color retention and adhesion along with our durable Superior Finish and a 5-year warranty. Upgrade to our Mid 7 system with Superior Elastomeric Plus finish for better flexibility and crack-bridging properties and a 7-year warranty.

Features & Benefits
  • Fiber-reinforcement for better crack resistance
  • Superior Elastomeric Plus Finish bridges hairline cracks
  • 5-year labor/material warranty
 System Use
Commercial
Residential
Mechanical

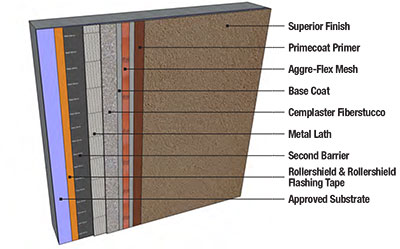

Cemplaster Fiberstucco C-Plus
corpus christi stucco wall systems Cemplaster Fiberstucco C-Plus includes the same quality components as the RS 12 system with an upgraded installation of Master Wall® base coat and mesh. The base coat and mesh offers crack resistance as well as leveling capabilities for the finish application. Options include Weatherstop Stucco base coat for air and water protection. This system carries a 14-year labor/material-type warranty.

Features & Benefits
  • Leveling and impact resistance
  • 100% weather protection
  • 14-year labor/material type-warranty
 System Use
Commercial
Residential

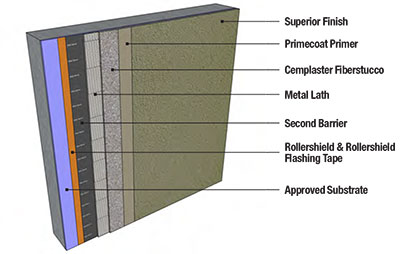

Cemplaster Fiberstucco RS 12
corpus christi stucco wall systems Cemplaster Fiberstucco RS 12 takes the most popular components of a stucco with consideration for value. It incorporates Master Wall’s® Rollershield LAB as the initial barrier over the approved substrate to offer a monolithic Air and Water Barrier installation to both seal and protect. Components also include Primecoat Primer and Superior Elastomeric Plus Finish. This system carries a 12-year labor/material-type warranty.

Features & Benefits
  • 100% weather protection
  • Bridges hairline cracks
  • 12-year labor/material-type warranty
 System Use
Commercial
Residential

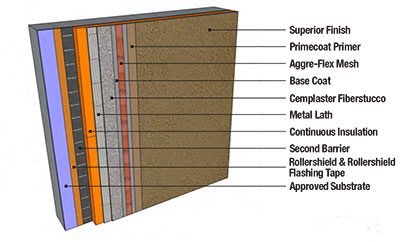

Cemplaster Fiberstucco CI
corpus christi stucco wall systems Cemplaster Fiberstucco CI offers components found in a high value stucco system and incorporates Continuous Insulation to meet new and expanding energy codes. Extruded insulation board is available in 1” (25 mm) with R-5, 1-1/2” (38 mm) with R-7.5 and 2” (51 mm) with R-10. Options also include Master Wall® Rollershield LAB, Stucco Ad-Liquid, leveling base coat and impact resistant mesh, Primecoat Primer and Master Wall® Superior Standard or Elastomeric Plus Finishes. This system carries up to a 17-year labor/material-type warranty.

Features & Benefits
  • Energy Efficient
  • Crack Resistant
  • 17-year labor/material-type warranty
 System Use
Commercial
Residential

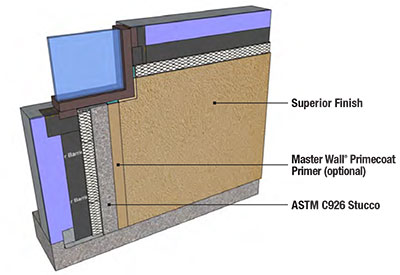

Finishes over Stucco

Textured Acrylic Finish System
corpus christi stucco wall systems Superior Finishes applied over a traditional stucco base makes projects look better. Our finishes offer better color and texture consistency compared to traditional cement textures. We suggest optional Primecoat Primer for even better color consistency. To bridge minor hairline cracks in stucco specify Superior Elastomeric Plus Finish. The textured finish is designed to stretch with the minor hairline cracking common in stucco.

Features & Benefits
Better Color Consistency
Easy Application
Works over all traditional stuccos 		System Use
Commercial
Residential

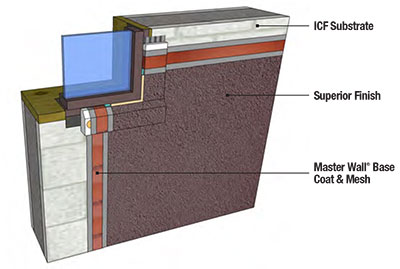

ICF Coating System

Direct Applied Exterior Finish System
corpus christi stucco wall systems Insulated Concrete Form (ICF) structures are made for Master Wall® finishes. Most forms feature recessed ties making the installation as simple as rasping and leveling the forms followed by a Master Wall® base coat with either standard or an upgraded reinforcing mesh. Our Superior Finish is applied to complete the job.

Features & Benefits
Easily Applied Durable Finish
Design flexibility
Medium-Impact Resistance is Standard 		System Use
Commercial
Residential

Attachment Method
Mechanical
Adhesive



Stucco Cement Board Coatings

Direct Applied Exterior Finish System
corpus christi stucco wall systems Stucco Cement Board coatings are applied over a high-strength water- managed ASTM C1325 or C1186 cement board. The application provides high impact and weather resistance where exterior insulation value is not required. The cement board installs easily over approved framing and substrates using one of two methods:
  • Over an approved structural sheathing in conditioned northern or southern climates
  • Directly to structurally-controlled framing in southern climates (below 4000 heating degree days) or unconditioned northern climates
Features & Benefits
Easily Applied
Durable Surfacing System
Impact Resistant
May be used with drainage mats
Foam trim easily added 		System Use
Commercial
Residential

Attachment Method
Mechanical

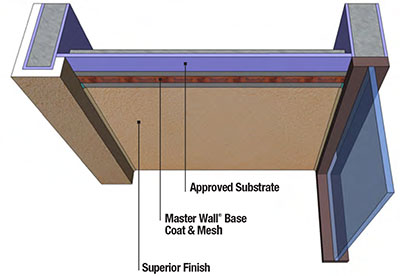

Soffit System

Direct Applied Exterior Finish System
corpus christi stucco wall systems The Master Wall Inc.® Soffit System application greatly improves the looks of any eave, overhang, canopy or large soffit. The textured surface and installed system is impact resistant and durable, yet with an economical cost compared to other soffit alternatives.
Features & Benefits
Easy Installation
Great aesthetics
Economical
Fire resistant 		System Use
Commercial
Residential
