Division 07 Assemblies

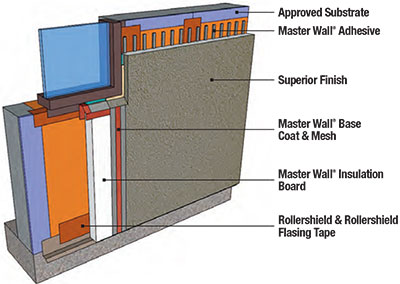

Rollershield Drainage EIFSClass PB Drainage Exterior Insulation and Finish System |
||
|
Master Wall Inc.® Rollershield Drainage Class PB Drainage Exterior Insulation and Finish System is a high performance commercial wall cladding.
It uses a roller-applied air and water barrier that can be used as a flashing-type material with excellent water holdout. Vertical adhesive
channels drain away any incidental water entering the system. This highly adaptable cladding is suitable for both new and retrofit construction.
|
|
|
Features & Benefits 99% Drainage Efficiency High Insulating Value (R-4 per inch) CFC & HCFC Free Insulation Board, Recyclable Medium Impact Resistance is Standard |
System Use Commercial Residential Attachment Method Adhesive |
|

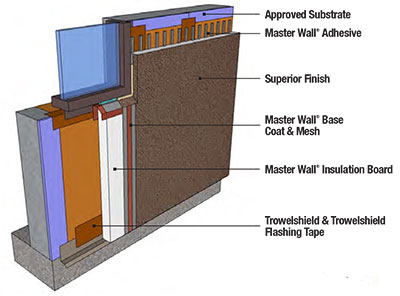

Trowelshield Drainage EIFSClass PB Drainage Exterior Insulation and Finish System |
||
|
Master Wall Inc.® Trowelshield Drainage Class PB Drainage Exterior Insulation and Finish System is a high performance commercial wall cladding. It
uses a thick trowel-applied air and water barrier that can be used as a flashing-type material with excellent water holdout. Vertical adhesive channels
drain away any incidental water entering the system. This highly adaptable cladding is suitable for both new and retrofit construction.
|
|
|
Features & Benefits 99% Drainage Efficiency High Insulating Value (R-4 per inch) CFC & HCFC Free Insulation Board, Recyclable Medium Impact Resistance is Standard |
System Use Commercial Residential Attachment Method Adhesive |
|

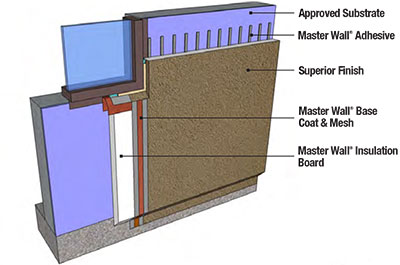

Aggre-flex SystemClass PB Exterior Insulation and Finish System |
||
|
Master Wall Inc.® Aggre-flex System is a polymer-based (Class PB) Exterior Insulation and Finish System (EIFS) that blankets commercial projects with
a layer of protective insulation reducing thermal losses at framing members and better insulating the entire building. The Aggre-flex System offers many
options from its weather-resistant monolithic exterior to design flexibility and ease of design. It has the visual appeal that architects and owners look
for without the weight or expense of traditional materials.
|
|
|
Features & Benefits High Insulating Value (R-4 per inch) Design Flexibility Medium Impact Resistance is standard |
System Use Commercial Residential Attachment Method Adhesive |
|

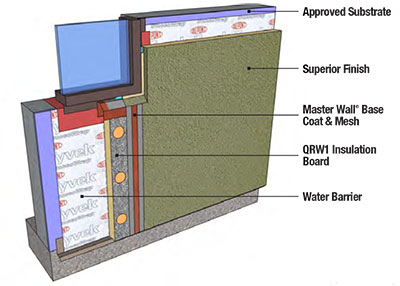

QRW1 Drainage EIFSClass PI Drainage Exterior Insulation and Finish System |
||
|
Master Wall Inc.® QRW1 system is a durable drainage system made for residential and light commercial construction. It’s large insulation boards install
easily and quickly over an approved water barrier. QRW1 may also use optional vent spacers or drainage mats for improved drainage.
|
|
|
Features & Benefits 98% Drainage Efficiency High Insulating Value (R-5 per inch) Easy Application |
System Use Commercial Residential Attachment Method Mechanical |
|

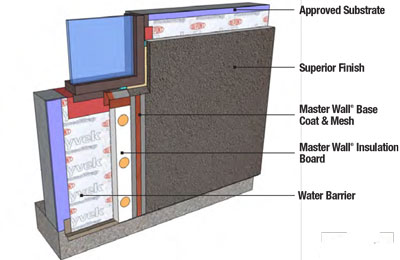

Aggre-flex Drainage SystemClass PB Drainage Exterior Insulation and Finish System |
||
|
Master Wall Inc.® Aggre-flex Drainage System is a mechanically attached polymer-based (Class PB Drainage) Exterior Insulation and Finish System (EIFS). The
system is applied over an approved secondary water barrier that helps protect the building from incidental water intrusion while insulating the entire
building in a blanket of protective insulation. Aggre-flex Drainage may be installed with flat insulation board, Master Wall® wavy insulation board or a
drainage spacer.
|
|
|
Features & Benefits 97% Drainage Efficiency High Insulating Value (R-4 per inch) Medium Impact Resistance is standard |
System Use Commercial Residential Attachment Method Mechanical |
|

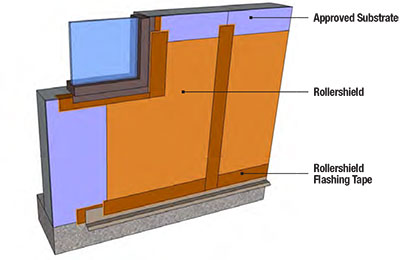

Rollershield LABLiquid Applied Air and Water Barrier |
||
|
The Rollershield LAB Liquid Applied Air/Water Barrier system works under all claddings that require a secondary water barrier including stone, brick,
stucco and Master Wall Inc.® EIFS. The system consists of the following components:
|
|
|
System Use Commercial Residential |
||
